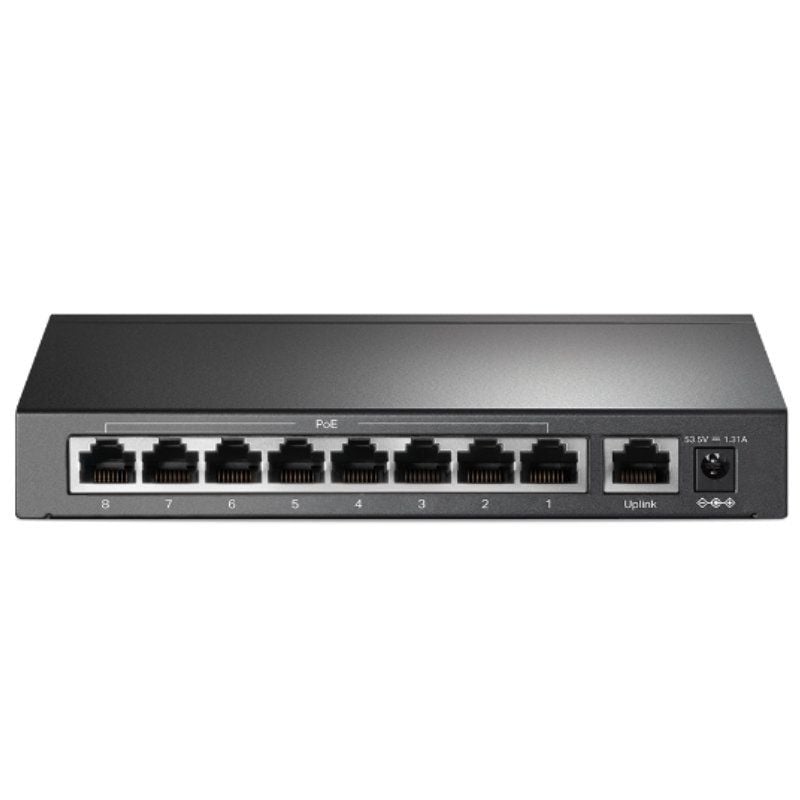

Switch TP-Link TL-SF1009P 9 Puertos/ RJ-45 10/100/ PoE

SWITCH TP-LINK 9-PORT 10/100 MBPS DESKTOP SWITCH WITH 8-PORT POE+

HARDWARE FEATURESInterface ? 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)? AUTO Negotiation? AUTO MDI/MDIXNetwork Media ? 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)? EIA/TIA-568 100O STP (maximum 100m)? 100BASE-TX: UTP category 5, 5e cable (maximum 100m)? EIA/TIA-568 100O STP (maximum 100m)Fan Quantity FanlessPhysical Security Lock YesExternal Power Supply External Power Adapter (Output: 53.5VDC / 1.31A)Packet Forwarding Rate 1.3392 MppsPoE Ports (RJ45) ? Standard: 802.3 af/at compliant? PoE Ports: Ports 1?8? Power Supply: 65 WBackbound Bandwidth 1.8 GbpsMac Address Table 2KJumbo Frame 2 KBSwitching Capacity 1.8 GbpsDimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)Max Power Consumption ? 3.6 (220/50 Hz. no PD connected)? 77.08 (220/50 Hz. with 65 W PD connected)Max Heat Dissipation ? 12.28 BTU/h (no PD connected)? 262.84 BTU/h (with 65 W PD connected)SOFTWARE FEATURESTransmission Method Store-And-ForwardAdvanced Functions ? Compatible With IEEE 802.3af/at Compliant PDs? Extend Mode Button (Ports 1?4 and Ports 1?8, Up to 250 m PoE power supply and data transmission)? Priority Mode Button (Ports 1?2)? Isolation Mode Button (Ports 1?8)? Mac Address Auto-Learning and Auto-Aging? IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex ModeOTHERSCertification FCC, CE, RoHS





TP-LINK TL-SF1009P. Tipo de interruptor: No administrado. Puertos tipo básico de conmutación RJ-45 Ethernet: Fast Ethernet (10/100), Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 9. Bidireccional completo (Full duplex). Tabla de direcciones MAC: 2000 entradas, Capacidad de conmutación: 1,8 Gbit/s. Estándares de red: IEEE 802.3af,IEEE 802.3at,IEEE 802.3x. Energía sobre Ethernet (PoE)

ESPECIFICACIONES TÉCNICAS


Características de administración
Tipo de interruptor: No administrado

Puertos e Interfaces
Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 9
Puertos tipo básico de conmutación RJ-45 Ethernet: Fast Ethernet (10/100)

Conexión
Estándares de red: IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
Tecnología de cableado ethernet de cobre: 10BASE-T,100BASE-TX
Tipos de cable soportados: Cat3,Cat4,Cat5,Cat5e
Dispone de Bidireccional completo (Full duplex) Dispone de Half duplex Dispone de Soporte de control de flujo Dispone de Auto MDI / MDI-X Dispone de Auto-negociación Dispone de Admite dirección MAC auto-learning Dispone de Admite dirección MAC auto-aging

Transmisión de datos
Tabla de direcciones MAC: 2000 entradas
Capacidad de conmutación: 1,8 Gbit/s
Dispone de Guardar y remitir

Diseño
Color del producto: Negro
Indicadores LED: Actividad, Enlace, PoE, Poder
Certificación: FCC, CE, RoHS

Desempeño
Dispone de Sin ventilador

Control de energía
Dispone de Fuente de alimentación incluida Consumo de energía (max): 77,08 W

Alimentación a través de Ethernet (PoE)
Dispone de Energía sobre Ethernet (PoE) Cantidad de puertos Power over Ethernet (PoE): 8
Potencia por puerto de alimentación a través de Ethernet (PoE): 30 W
Potencia a través de Ethernet (PoE) Presupuesto: 65 W

Condiciones ambientales
Intervalo de temperatura operativa: 0 - 40 °C
Intervalo de temperatura de almacenaje: -40 - 70 °C
Intervalo de humedad relativa para funcionamiento: 10 - 90%
Intervalo de humedad relativa durante almacenaje: 5 - 90%
Disipación del calor: 262,84 BTU/h

Peso y dimensiones
Ancho: 171 mm
Profundidad: 98 mm
Altura: 27 mm


Escriba una opinión

Nota: No se permite HTML.
    Malo           Bueno

SWITCH TP-LINK TL-SF1009P

  • 49.90€

  • Sin IVA: 41.24€
