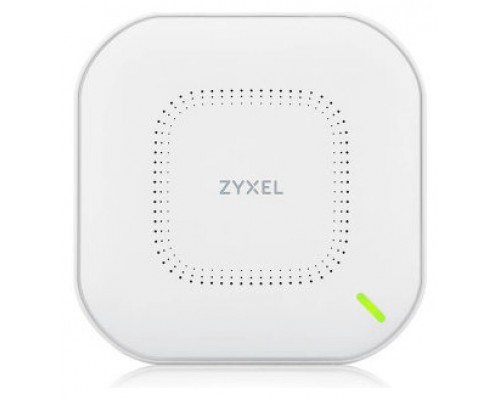

Marca	ZyXEL
Modelo	WAX610D-EU0101F

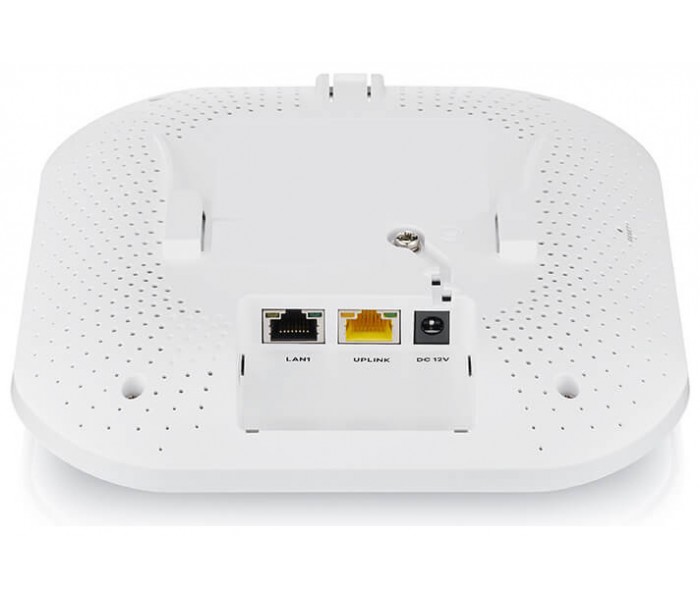

Características Hardware	- Ethernet port 1 x 10/100/1000/2500M LAN 1 x 10/100/1000M LAN - Power PoE (802.3)at: power draw 19.5 W DC input : 12 VDC 2A - Antenna type: 4x4 + 2x2 dual-optimized antenna - Antenna gain 2.4GHz: Peak Gain 5dBi 5GHz: Peak Gain 6dBi Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm - Band Steering: Yes - WDS/Mesh: Yes (V6.10) - Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v - DCS (Auto Channel): Yes - Load balancing: Yes
Características Inalámbricas	- Standard: IEEE802.11 ax/ac/n/g/b/a - MIMO: MU-MIMO - Wireless speed: 2.4GHz: 575Mbps 5GHz: 2400Mbps - Frequency band: 2.4 GHz USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz (IEEE 802.11 a/n/ac) USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz - Bandwidth: 20-, 40- ,80- and 160-MHz - Conducted typical transmit output power: US (2.4GHz/5GHz): 23/28dBm EU (2.4GHz/5GHz): 19/25dBm - IPv6 - VLANs - WMM - U-APSD - DiffServ marking
Gestión	- Operating mode: Nebula Cloud managed Controller-managed Standalone - ZON Utility: Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration - Zyxel Wireless Optimizer: WiFi AP planning WiFi coverage detection Wireless health management - Web UI/CLI: Yes - SNMP: Yes
Otras Características	Físicas - Dimensiones (An. x Pr. x Al.) (mm/pulg.): 180 x 180 x 39/7.09 x 7.09 x 1.54 - Peso (g/lb.): 545/1.20 - MTBF (h): 329,004 Seguridad - Encryption WEP WPA WPA2-PSK/WPA3 - Authentication WPA WPA2 WPA3-Enterprise EAP IEEE 802.1X RADIUS authentication - Access management L2-isolation MAC filtering Rogue AP detection Entorno - Temperatura de funcionamiento 0°C a 50°C / 32°F a 122°F - Humedad de funcionamiento 10% a 95% (sin condensación) - Temperatura de almacenamiento -30°C to 70°C/-22°F to 158°F - Humedad de almacenamiento 10% a 90% (sin condensación) Certificaciones - Radio FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 - EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 - Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1 Contiene - Placa de montaje - Tornillos de montaje
Fecha de revisión	14-11-2022 por MPM
