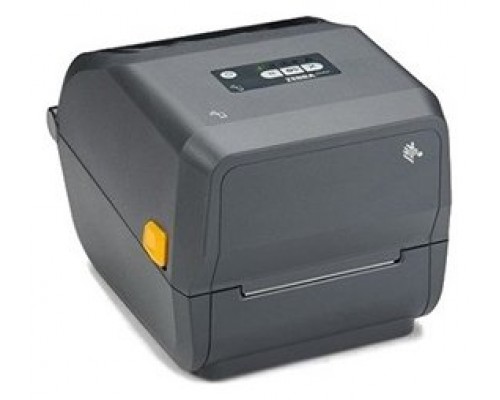

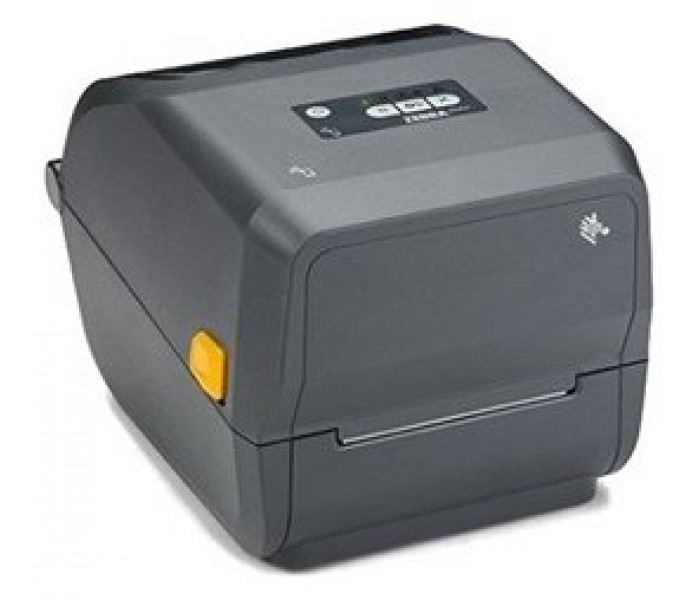

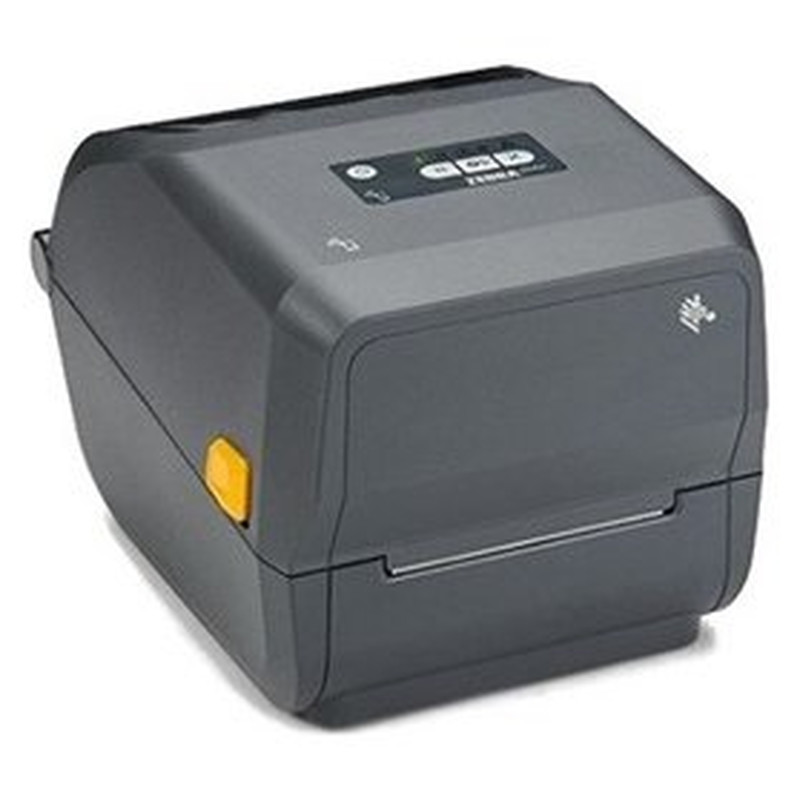

ZEBRA ZD421 TT 203DPI USB HOST LAN PRNTBTLE5 EU/UK SWISS FONT EZ

Marca	Zebra
Modelo	ZD4A042-30EE00EZ
Especificaciones	- Sistema Operativo: Link-OS® - Resolución: 203 dpi/8 dots per mm - Memoria 512 MB Flash; 256MB SDRAM 64 MB user available non-volatile memory 8 MB user available SDRAM - Ancho máximo de impresión 4.09 in./104 mm for 203 dpi 4.27 in./108 mm for 300 dpi - Cartucho: 4.09 in./104 mm for 203 and 300 dpi - Velocidad máxima de impresión 6 in./152 mm per second (203 dpi) 4 in./102 mm per second (300 dpi) - Sensores de medios: Sensor móvil de anchura total de reflejo/marca negra, sensor de transmisión/hueco de posición múltiple - Firmware: ZPL II; EPL 2; XML; ZBI; PDF Direct - Térmica directa: 220,8 mm L x 177,5 mm W x 150,7 mm H - Rollo de transferencia térmica: 267 mm L x 202 mm W x 189 mm H - Cartucho de transferencia térmica: 254 mm L x 202 mm W x 177 mm H - Peso Térmica Directa: 1,35 kg - Rollo de Transferencia Térmica: 2,05 kg - Cartucho de Transferencia Térmica: 2,3 kg
Conectividad	- Ethernet
Características de papel	- Label Length Maximum: 39.0 in./991 mm Minimum: 0.25 in./6.4 mm - Media Width Direct Thermal: 0.585 in./15 mm to 4.25 in./108 mm Thermal Transfer Roll: 0.585 in./15 mm to 4.41 in./ 112 mm Thermal Transfer Cartridge: 0.585 in./15 mm to 4.65 in./118 mm - Media Roll Size Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) - Media Thickness 0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max. - Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands - Ribbon Outside Diameter 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) - Ribbon Standard Length Roll: 984 ft. (300 m); 243 ft. (74 m) Cartridge: 243 ft. (74 m) - Ribbon Ratio 1:4 ribbon to media (300 m) 1:1 ribbon to media (74 m) - Ribbon Width Roll: 1.33 in./33.8 mm - 4.3 in./109.2 mm Cartridge: 4.3 in./109.2 mm - Ribbon Core I.D. 300 meter ribbon 1 in./25.4 mm 74 meter ribbon 0.5 in./12.7 mm
Códigos de barras	- Bar Code Ratios: 2:1 and 3:1 - 1D Bar Codes: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of- 5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code - 2D Bar Codes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec - Fonts and Graphics: 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font
Fecha de revisión	25-03-2022 por MPM
