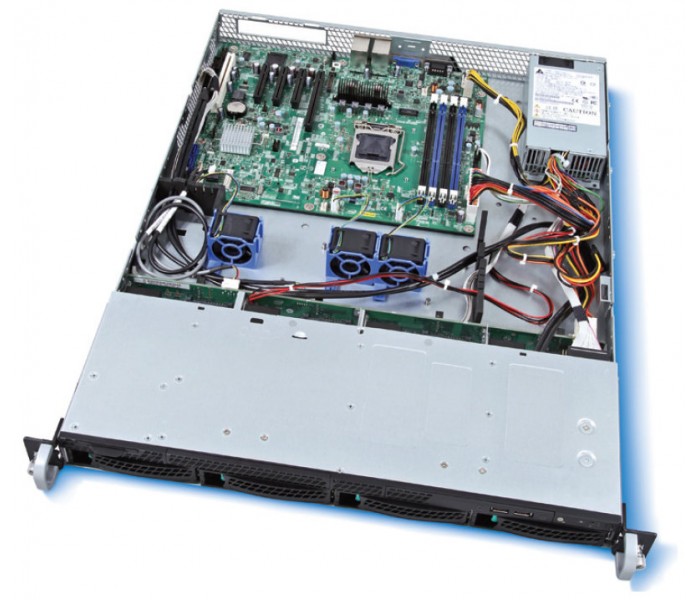

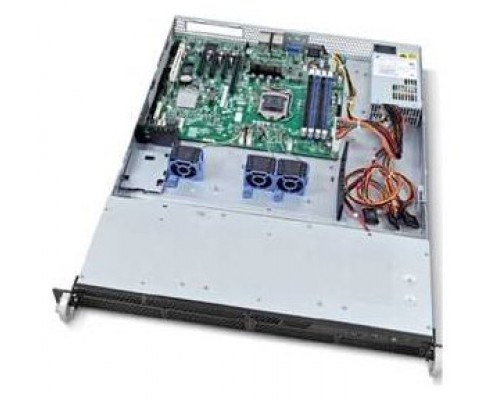

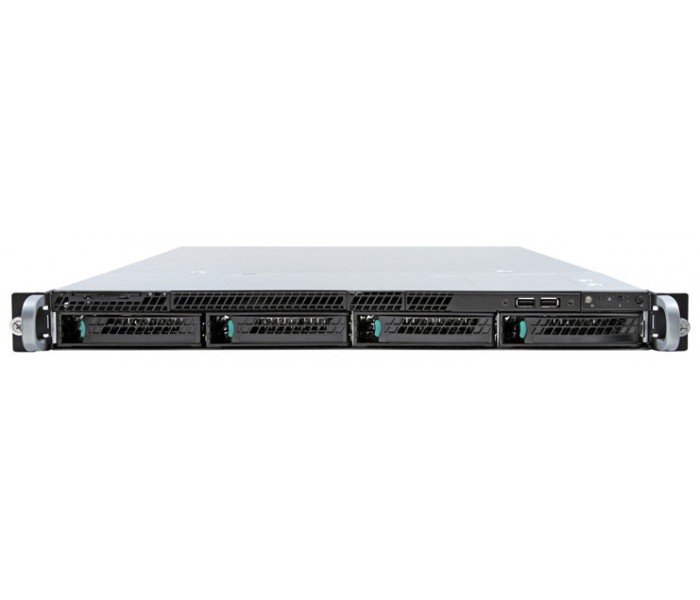

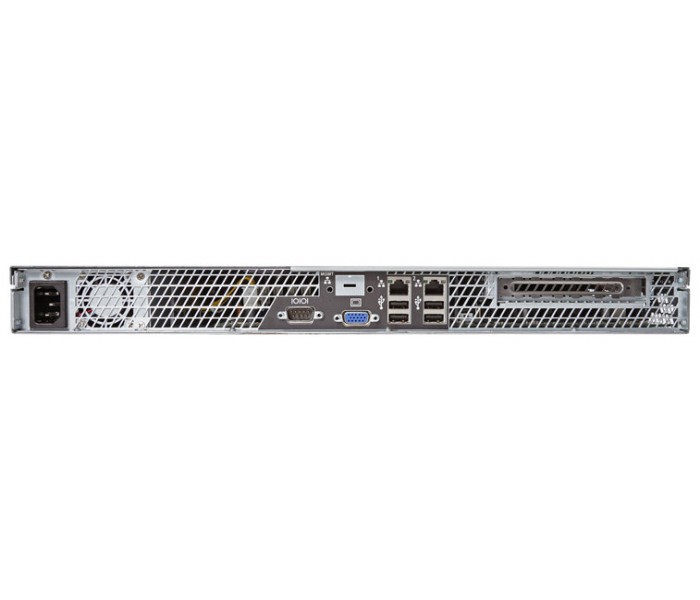

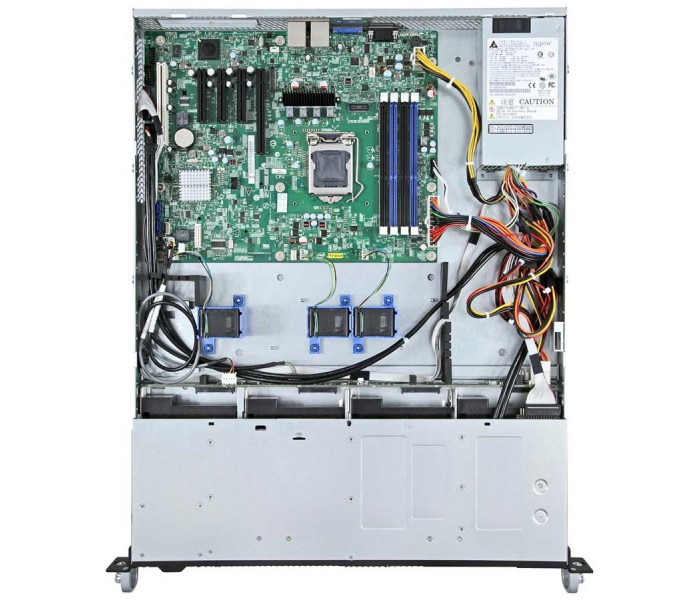

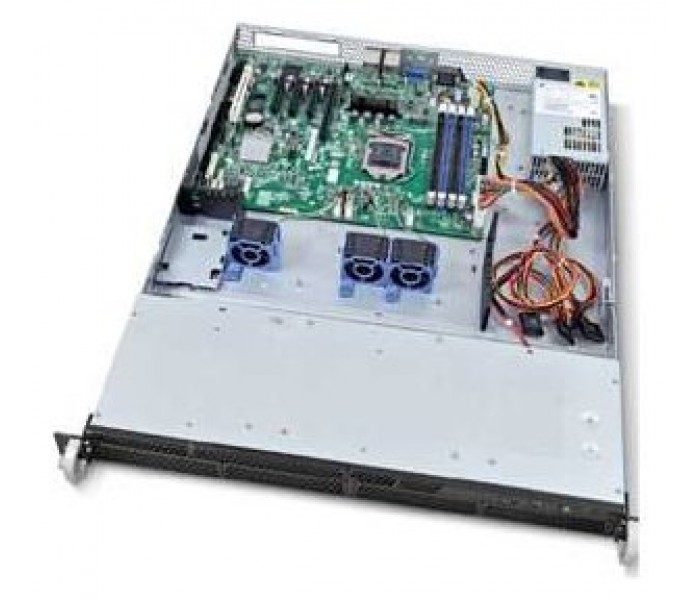

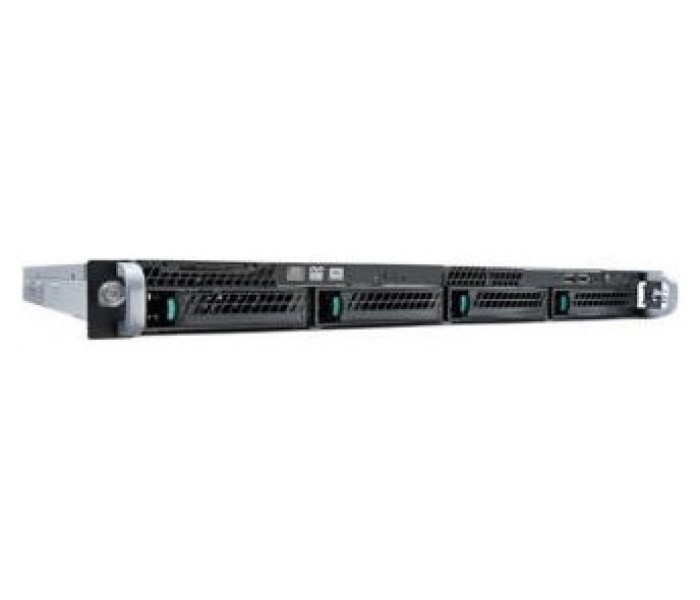

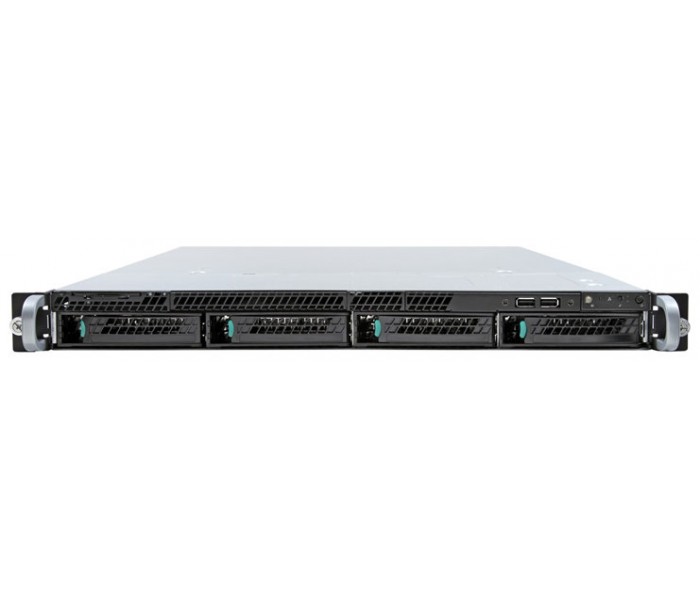

The Intel Server System R1304BTLSHBN represent the latest generation of 1U rack-optimized system solutions from Intel. Providing higher flexibility in data storage and security, including scalable, affordable upgrade. The R1304BT systems support the Intel Xeon processor E3-1200 series and will support the next generation processor once available ensuring future upgradeability. It supports up to four hot-swap 3.5" SATA drives.
ESPECIFICACIONES
| Procesador | |
| Circuito integrado de tarjeta madre: | Intel C204 |
| Socket de procesador: | Socket H2 (LGA 1155) |
| Familia de procesador: | Intel |
| Número de procesadores soportados: | 1 |
| Intel® ® Xeon ® serie: | E3-1200 |
| Memoria | |
| Número de ranuras DIMM: | 4 |
| Memoria interna máxima: | 32 GB |
| Forma de factor de memoria: | 240-pin DIMM |
| Medios de almacenaje | |
| Niveles RAID: | 0, 1, 5, 10 |
| Número de discos duros soportados: | 4 |
| Interfaces de unidad de disco duro soportadas: | SAS, Serial ATA II |
| Hot-swap Bahía para disco duro: | ![]() |
| Tamaños de disco duro soportados: | 3.5" |
| Red | |
| Características de red: | Gigabit Ethernet |
| Tecnología de cableado ethernet de cobre: | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Ethernet LAN, velocidad de transferencia de datos: | 10,100,1000 Mbit/s |
| Puertos e Interfaces | |
| Cantidad de puertos USB 2.0: | 9 |
| Puerto serial: | 2 |
| Cantidad de puertos VGA (D-Sub): | 1 |
| Ethernet LAN (RJ-45) cantidad de puertos: | 2 |
| Número de conectores SATA: | 6 |
| Ranuras de expansión | |
| Ranuras PCI: | 1 |
| Ranuras x4 PCI Express: | 3 |
| Ranuras x8 PCI Express: | 1 |
| Versión de entradas de PCI Express: | 2.0 |
| Gráficos | |
| Memoria máxima de adaptador de gráficos: | 128 MB |
| Diseño | |
| Factor de forma: | 1U |
| Color del producto: | Negro |
| Soporte de ventiladores redundante: | ![]() |
| Desempeño | |
| Soporte de interfaz de administración inteligente de plataforma (IPMI): | ![]() |
| Control de energía | |
| Fuente de alimentación: | 350 W |
| Número de fuentes de alimentación: | 1 |
| Certificado Energy Star: | ![]() |
| Peso y dimensiones | |
| Ancho: | 43,8 cm |
| Profundidad: | 55,3 cm |
| Altura: | 4,5 cm |
| Otras características | |
| Graphics chipset: | Intel |
| Tipo de memoria de adaptador gráfico: | GDDR3 |
| Número de procesadores instalados: | 1 |
| Configuración de CPU (máximo): | 1 |
| Familia de producto: | 1U server system |
| Serie de producto: | Intel R1304BT |
| Nombre en clave de producto: | Beartooth Pass |
| Ventilador estándar: | 3 x 40mm |
Intel R1304BTLSHBN servidor barebone Intel® C204 LGA 1155 (Socket H2) Bastidor (1U) Negro (Espera 4 dias)
- Marca: Intel
- Código: R1304BTLSHBN
- Disponibilidad: No disponible
-
849.25€
- Sin IVA: 696.53€
- Canon LPI incluido: 5.33€
