Marca	D-Link
Modelo	DGS-3630-52TC/SI
Puertos	- 44 x 10/100/1000BASE-T - 4 x 1000BASE-T/SFP combo - 4 x 10 GbE SFP+ - Console Port: RJ45 and Mini USB console ports for out-of-band CLI management - Management Port: 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management - Alarm Port: 1 x RJ-45 - USB Port: 1 x USB 2.0 Type A
Despempeño	- Switching Capacity: 176 Gbps - Maximum Packet Forwarding Rate: 130.95 Mpps - Packet Buffer: 4 MBytes - MAC Address Table: 68K entries - IPv4 Routing Table: 16K entries - IPv6 Routing Table: 7K entries - IPv4 Forwarding Table: 32K entries - IPv6 Forwarding Table: 16K entries - Jumbo Frame Size: 12 KBytes
Características	Stackability - Physical Stacking - Virtual Stacking/Clustering of up to 32 units L2 Features - MAC Address Table : up to 68K entries4 - Flow Control - Spanning Tree Protocol - Jumbo Frame: up to 12 Kbytes - 802.1AX Link Aggregation - ERPS (Ethernet Ring Protection Switching) version 2 - Port Mirroring - Flow Mirroring - VLAN Mirroring - RSPAN - L2 Protocol Tunneling VLAN - 802.1Q - 802.1v Protocol-based VLAN - Double VLAN (Q-in-Q) - Port-based VLAN - MAC-based VLAN - Subnet-based VLAN - Private VLAN - VLAN Group - Multicast VLAN (ISM VLAN for IPv4/IPv6) - Voice VLAN - Auto Surveillance VLAN - VLAN Trunking - GVRP: Up to 4K dynamic VLANs - Asymmetric VLAN L2 Multicast - MLD Snooping - IGMP Snooping - PIM Snooping L3 Features - IPv4 ARP/IPv6 ND: support up to 32K/16K4 - Gratuitous ARP - IP Interface - Loopback Interface - Proxy ARP - IPv6 Tunneling - VRRP v2/v3 - IP Helper L3 Routing - Supports 16K hardware routing entries shared by IPv4/IPv6 - Supports up to 32K hardware L3 forwarding entries shared by IPv4/IPv62 - Static Route - IPv4/IPv6 Default Route - PBR (Policy-based Route) - Null Route - Route Preference - Route Redistribution - Graceful Restart (GR) Helper - BFD (Bidirectional Forwarding Detection) - RIPv1/v2/ng L3 Multicast - IGMP/MLD Filtering QoS (Quality of Service) - 802.1p - 8 queues per port - Queue Handling - Congestion Control - 802.1Qbb Priority-based Flow Control (PFC) for 10 GbE port - Bandwidth Control - Policy Map - CoS based on: - Three Color Marker ACL (Access Control List) - ACL based on - Max. ACL entries - Time-based ACL Security - Port Security - Broadcast/Multicast/Unicast Storm Control - D-Link Safeguard Engine - DHCP Server Screening - Dynamic ARP Inspection - IP Source Guard - DHCP Snooping - IPv6 Snooping - Dynamic ARP Inspection (DAI) - DHCPv6 Guard - IPv6 Route Advertisement (RA) Guard - IPv6 ND Inspection - Duplicate Address Detection (DAD) - ARP Spoofing Prevention - L3 Control Packet Filtering - Unicast Reverse Path Forwarding (URPF) - Traffic Segmentation - SSL - SSH - BPDU Attack Prevention - DOS Attack Prevention - NetBIOS/NetBEUI filtering AAA - 802.1X Authentication - Web-based Access Control (WAC) - Compound Authentication - MAC-based Access Control (MAC) - Guest VLAN - Microsoft® NAP - Privilege Level for Management Access - RAIDUS and TACACS+ Authentication - Authentication Database Failover - RADIUS/TACACS+ Accounting Management - NTPv3/v4 - Precision Time Protocol (PTP) - Web-based GUI - Command Line Interface (CLI) - Telnet Server for IPv4/IPv6 access - Telnet Client for IPv4/IPv6 - SNMP - SNMP Trap - TFTP Client for IPv4/IPv6 - FTP Client for IPv4/IPv6 - IPv4 SFTP Server - RCP - System Log for IPv4/IPv6 Syslog Server - SMTP - RMONv1 - RMONv2 - Command Logging - LLDP/LLDP-MED - D-Link Discover Protocol (DDP) - DHCP Client option 12 - DHCP Auto-configuration - DHCP Auto-image - DHCP Relay option 60/61/62/18/37/125 - DHCP/DHCPv6 Local Relay - DHCP Server - DHCPv6 Prefix Delegation (PD) - Multiple Images/ Multiple Configurations - DNS Relay for IPv4/IPv6 - DNS Client for IPv4/IPv6 - Debug Command - Password Recovery/ Encryption - Ping/ Traceroute for IPv4/IPv6 - Microsoft® Network Load Balancing (NLB) - Switch Resource Management (SRM) - sFlow - D-Link License Management System (DLMS)
Otras Caracteristicas	- Dimensiones: 441 x 259.8 x 44 mm - Peso: 4.04 kg - EMI/EMC: CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Fecha Revisión	27-12-2017 por MSB

Escriba una opinión

Su nombre

Su opinión

Nota: No se permite HTML.

Puntuación     Malo           Bueno

Introduce el código de la casilla inferior:

Continuar

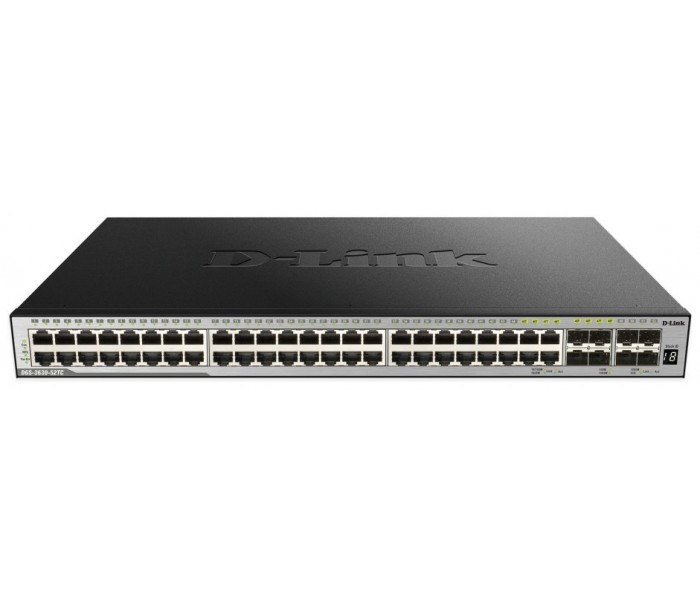

SWITCH GESTIONABLE L3 D-LINK STACKABLE

• Marca: D-link
• Código: DGS-3630-52TC/SI
• Disponibilidad: No disponible

• 4,067.10€

• Sin IVA: 3,361.24€
