Especificaciones técnicas
- Ahorro de energía
- Link Status detection
- LED Shut-Off
- Port Shut-Off
- System Hibernation
- Time-based PoE (DGS-1210-10P/28P/52P/52MP only)
Seguridad
- Access Control List secures network
- D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding
- Port Security supports 64 MACs per port
- ARP Spoofing Prevention
Intuitive Management
- D-Link Network Assistant Utility or Web-based GUI
- Built-in SNMP MIB for remote NMS (D-View 6.0)
- Compact CLI through Telnet
Prestaciones avanzadas
- Auto Surveillance VLAN
- Loopback Detection automatically disables a port when a loop is detected
- Cable Diagnostics allows administrators to determine cable status
- SFP ports for flexibility
- Auto MDI/MDIX
Interface
- Puertos 10/100/1000BASE-TX
- DGS-1210-28 - 24 puertos
- Puertos SFP
- DGS-1210-28 - 4 puertos
Rendimiento
- Switch Capacity
- DGS-1210-28- 56 Gbps
- 64-Byte Packet Forwarding Rate
- DGS-1210-28 - 41.7 Mpps
- MAC Address Table Size
- 16K
- Packet Buffer
- DGS-1210-10/20/28- 1.5 MB per device
Consumo (Standby/Maximum)
- DGS-1210-28 - 17.84W / 22.45W
Power Input
- 10 to 240 VAC, 50/60HZ
Dimensiones (W x D x H)
- DGS-1210-28 - 440 x 140 x 44 mm
Peso
- DGS-1210-28 - 1.67 kg
Certificaciones
- CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick
Tipo incluidoSobremesa,montaje en rack - 1U
Puertos24 x 10/100/1000 + 4 x Gigabit SFP
Alimentación por Ethernet (PoE)PoE
RendimientoCapacidad de conmutación:56 Gbps
Velocidad de reenvío:41.7 Mpps
Tamaño de tabla de dirección MAC16K de entradas
Admite carcasa Jumbo10000
Protocolo de gestión remotaSNMP 1,SNMP 2,Telnet,SNMP 3,SNMP 2c,HTTP,CLI
CaracterísticasControl de flujo,capacidad duplex,conmutación Layer 2,soporte de DHCP,alimentación mediante Ethernet (PoE),negociación automática,soporte BOOTP,soporte RARP,soporte ARP,soporte VLAN,señal ascendente automática (MDI/MDI-X automático),snooping IGMP,soporte para Syslog,copia de puertos,Cola Round Robin (WRR) ponderada,store and forward,filtrado de dirección MAC,Broadcast Storm Control,Multicast Storm Control,Unicast Storm Control,actualizable por firmware,soporte SNTP,admite Spanning Tree Protocol (STP),admite Rapid Spanning Tree Protocol (RSTP),soporte de Trivial File Transfer Protocol (TFTP),soporte de Access Control List (ACL),Quality of Service (QoS),Servidor DHCP,Safeguard Engine,D-Link Green Technology
Cumplimiento de normasIEEE 802.3,IEEE 802.3u,IEEE 802.1D,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.1p,IEEE 802.3af,IEEE 802.3x,IEEE 802.3ad (LACP),IEEE 802.1w,IEEE 802.1x,IEEE 802.3at
Memoria RAM128 MB
Memoria Flash16 MB
Indicadores de estadoActividad de enlace,velocidad de transmisión del puerto,alimentación,tinta OK
Interfaces24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE
4 x SFP (mini-GBIC)
Dispositivo de alimentaciónFuente de alimentación - interna
Voltaje necesarioCA 120/230 V ( 50/60 Hz )
Cumplimiento de normasCertificado FCC Clase A,C-Tick,cUL,VCCI Class A ITE,IC Class A
Temperatura mínima de funcionamiento0 °C
Temperatura máxima de funcionamiento50 °C
Ámbito de humedad de funcionamiento0 - 95%
Temperatura mínima de almacenamiento-20 °C
Temperatura máxima de almacenamiento70 °C
Ámbito de humedad de almacenamiento0 - 95%

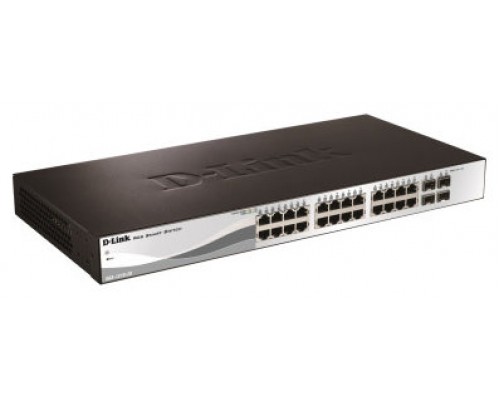

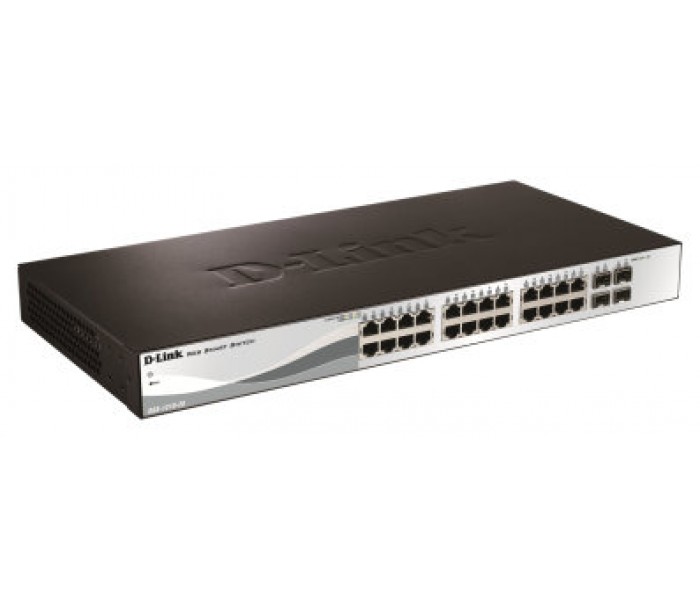

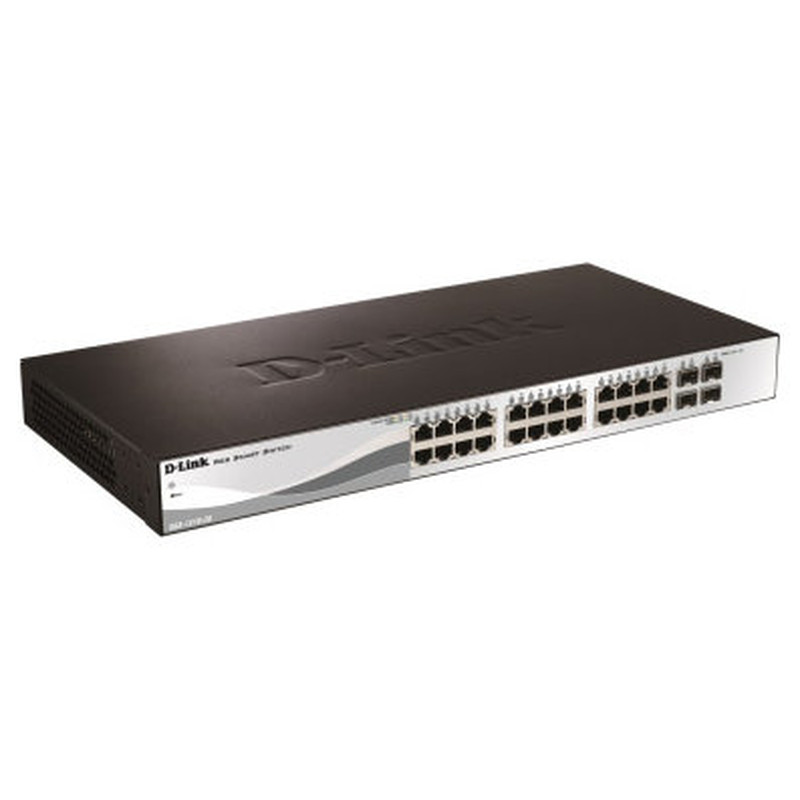

D-LINK SWITCH 28 PUERTOS 10/100/1Gbit +4 Gbit. SFP (Espera 4 dias)
- Marca: D-link
- Código: DGS-1210-28
- Disponibilidad: No disponible
-
252.60€
- Sin IVA: 208.76€
