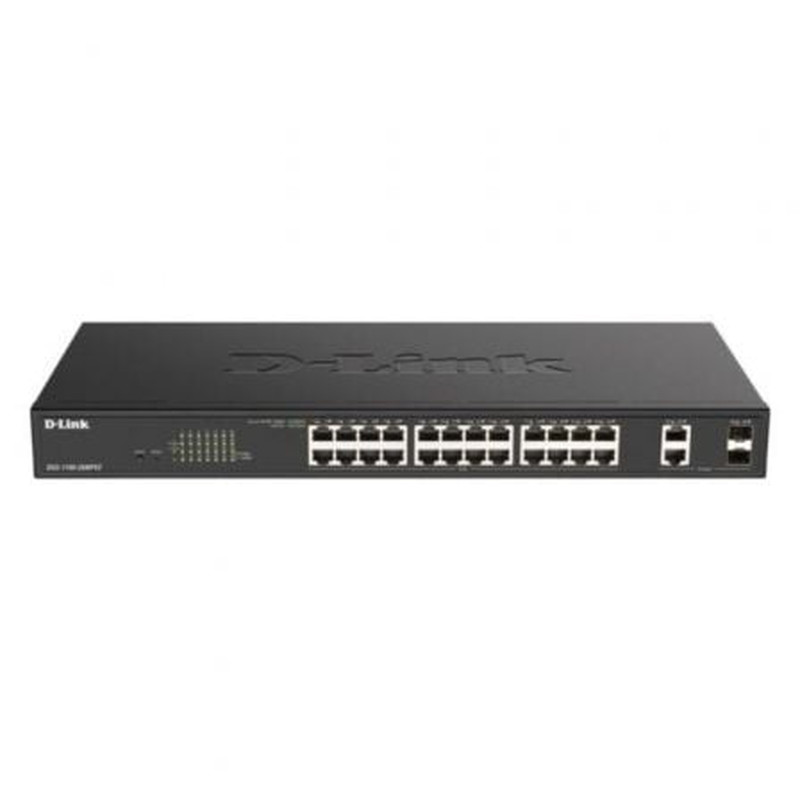

DGS-00-26MPV224-port Poe+ Gigabit Smart Managed
·,24x 000Base-T 802.3af/802.3at PoE·,2x SFP COMBO·,370W.-inch metal case. Comes with adapters to install in 9-inch racks.Fanless, silent operation.Improved resiliency, longer MTBF (Mean Time Between Failures).VLAN support for traffic segmentation.AutoSurveillance VLAN for easy integration with IP-based surveillance systems.Loopback detection and broadcast storm control to avoid network downtime.QoS (Quality of Service) and bandwidth control to ensure smooth operation.Cable diagnostics function to help to troubleshoot wiring problems.Configurable through a web interface or SmartConsole utility





000Base-T PoE Interface
24

Auto MDI/MDIX
Yes

0/00/000BASE-T PoE ports
24

0/00/000BASE-T/SFP Combo ports
2

Switch Capacity
52 Gbps

Max. Packet Forwarding Rate
38.69 Mpps

Comply with RoHS 6
Yes

Energy Efficiency Ethernet (EEE)
Yes

Power Saving By Link Status
Yes

Power Saving By LED Shut-Off
Yes

Power Saving By Port Shut-Off
Yes

Power Saving By System Hibernation
Yes

Time-based PoE
Yes

Maximum PoE Budget
370W

PoE Budget
370 W (30 W max. per PoE port)

MAC Address Table Size
8K

802.3x Flow Control
Yes

Head-of-line (HOL) Blocking Prevention
Yes

802.D Spanning Tree (STP)
Yes

802.w Rapid Spanning Tree (RSTP)
Yes

802.AX Link Aggregation
Yes

802.3ad Link Aggregation
Yes

Link Aggregation Group Per Device
3

Max Port Per Link Aggregation Group
8

Port Mirroring
Yes

Jumbo Frame
926Byte

Loopback Detection (LBD)
Yes

IGMP Snooping
Yes

Max IGMP Snooping Groups
64

802.Q VLAN
Yes

Port-based VLAN
Yes

Voice VLAN
Yes

Auto Surveillance VLAN
Yes(2.0)

Asymmetric VLAN
Yes

Provider Backbone Bridge (PBB)
Yes

Number of Queue
8

Class of Service (CoS)
Yes

Strict Priority Queue (SPQ)
Yes

Weighted Round Robin (WRR)
Yes

Deficit Round Robin (DRR)
Yes

Time based QoS
Yes

Port-based Bandwidth Control
Yes

SSL
Yes

Broadcast/Multicast/Unicast Storm Control
Yes

Traffic Segmentation
Yes

D-Link Safeguard Engine
Yes

DoS Attack Prevention
Yes

Cable Diagnostics
Yes

Simple Network Time Protocol (SNTP)
Yes

Web-based GUI
Yes

SNMP
Yes

SNMP Trap
Yes

TFTP Client
Yes

System Log
Yes

LLDP
Yes

D-Link Discover Protocol (DDP)
Yes

DHCP/BootP Client
Yes

Dual Images
Yes

Ping
Yes

D-Link Network Assistant
Yes

Smart Wizard
Yes

Store-and-Forwarding
Yes

Dimension
440 x 285 x 43 mm

Weight
3.83Kg

Operation Temperature
-0-55°,C

Storage Temperature
-20-70°,C

Operation Humidity
0%-95% RH

Storage Humidity
0%-95% RH

Operating Altitude
2000 m

Maximum Power Consumption
434.4 W (PoE on)23.58 W (PoE off)

Maximum Heat Dissipation
470.46 BTU/hr

Acoustic
53.7 dB(A)

MTBF
269,37 hours

Power Input
AC: 00-240V

CPU Speed
400MHz

DRAM Size
28MB DDR3

Flash Memory Size
32MB

Packet Buffer Size
4.MBytes

FAN
Fan *2
