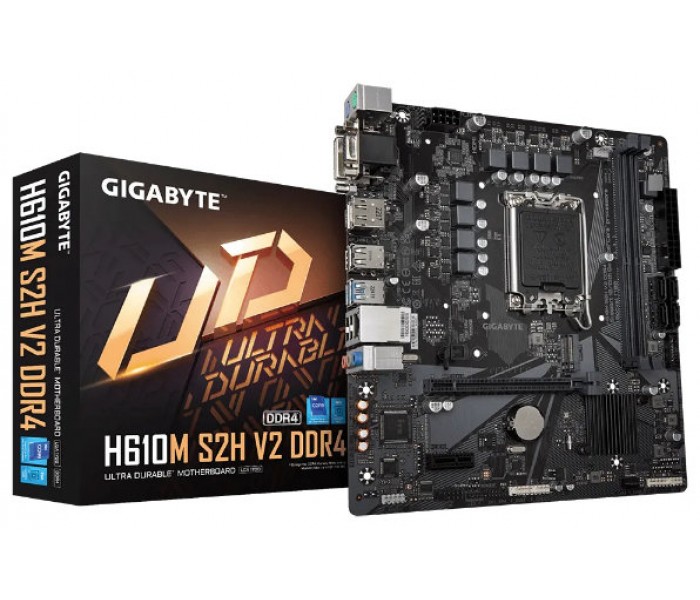

Placa Base Gigabyte H610M S2H V2 DDR4 Socket 1700/ Micro ATX

Especificaciones:. Procesador. . LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*. L3 cache varies with CPU. * Please refer to ""CPU Support List"" for more information.. . Chipset. . Intel® H610 Express Chipset. . Memoria. . Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. upport for Extreme Memory Profile (XMP) memory modules. (Please refer ""Memory Support List"" for more information.). . Gráfica Integrada. . Integrated Graphics Processor-Intel® HD Graphics support:. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz. * The DVI-D port does not support D-Sub connection by adapter.. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. * Support for HDMI 2.0 version and HDCP 2.3.. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz. * Support for DisplayPort 1.2 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.). . Audio. . Realtek® Audio CODEC. High Definition Audio. 2/4/5.1/7.1-channel. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.. . LAN. . Realtek® GbE LAN chip (1 Gbps/100 Mbps). . Zócalos de Expansión. . CPU:. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16. Chipset:. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1. . Interfaz de almacenamiento. . Chipset:. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support). 4 x SATA 6Gb/s connectors. . USB. . Chipset:. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header). 4 x USB 2.0/1.1 ports on the back panel. Chipset+USB 2.0 Hub:. 4 x USB 2.0/1.1 ports available through the internal USB headers. . Conectores Internos E/S. . 1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 2 x system fan headers. 1 x M.2 Socket 3 connector. 4 x SATA 6Gb/s connectors. 1 x RGB LED strip header. 1 x front panel header. 1 x front panel audio header. 1 x USB 3.2 Gen 1 header. 2 x USB 2.0/1.1 headers. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only). 1 x serial port header. 1 x Clear CMOS jumper. . Panel E/S Trasero. . 1 x PS/2 keyboard port. 1 x PS/2 mouse port. 1 x D-Sub port. 1 x DVI-D port. 1 x DisplayPort. 1 x HDMI port. 2 x USB 3.2 Gen 1 ports. 4 x USB 2.0/1.1 ports. 1 x RJ-45 port. 3 x audio jacks. . Controlador E/S. . iTE® I/O Controller Chip. . BIOS. . 1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. . Formato. . Micro ATX Form Factor; 23.0cm x 21.5cm
