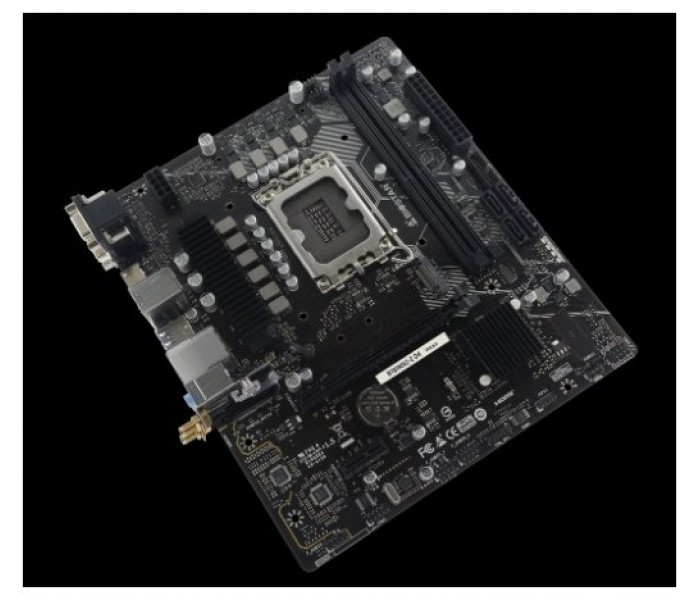

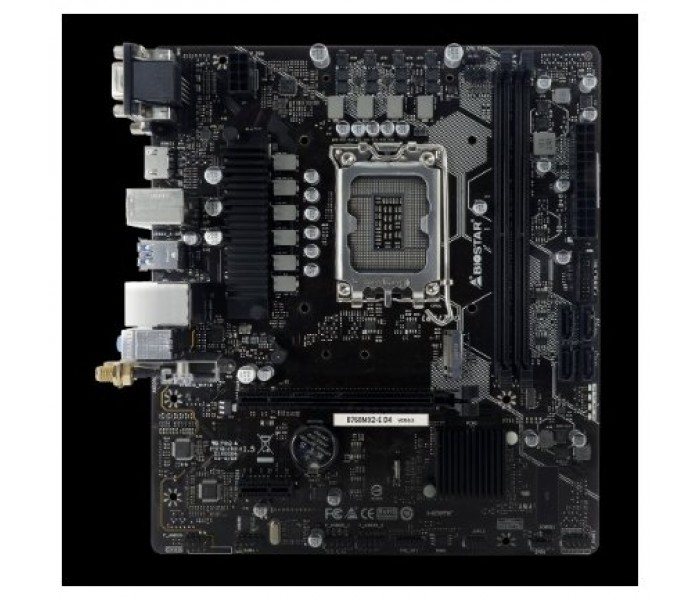

PB BIOSTAR B760MX2-E D4 M-ATX Skt 1700 HDMI VGA DVI 2xDDR4 3200MHz 1xM.2 4xSATA 2.5G LAN USB 3.2

Chipset Intel B760

CPU SUPPORT Support for 12th/13th/14th Generation Intel Core? i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.

MEMORY Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4400+(OC)
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel® Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO Supports DX12
Supports HDCP

STORAGE Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports
Intel B760 Chipset
1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):
Supports M.2 Type 2242 /2260 /2280 SSD module
Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA SSD
4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology

LAN RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC ALC897
7.1 Channels, High Definition Audio
USB 4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers)

EXPANSION SLOT INTEL 12th/13th/14th Processors
1 x PCIe 4.0 x16 Slot (x16 mode)
INTEL B760 Chipset
1 x PCIe 3.0 x1 Slot

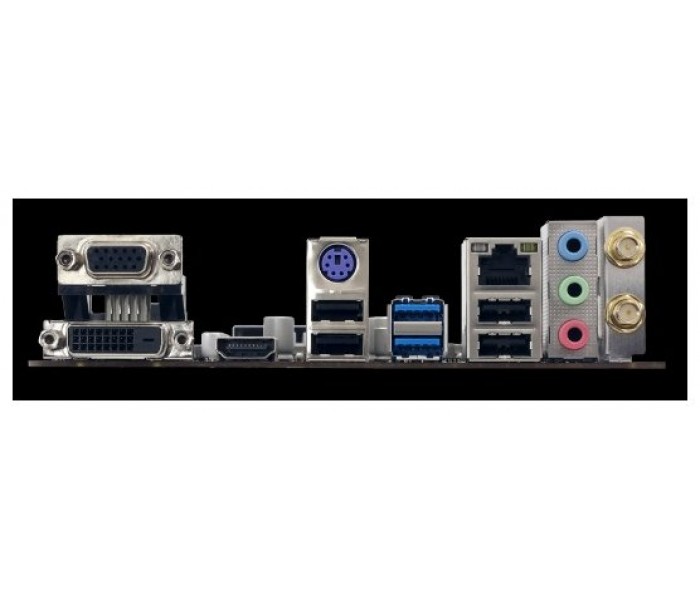

REAR I/O 1 x WIFI Antenna Port
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI
1 x VGA+DVI Port
2 x USB 3.2 (Gen1) port
4 x USB 2.0 port
1 x LAN port
3 x Audio Jack

INTERNAL I/O 4 x SATA III Connector (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
* M.2 (E key) Wi-Fi card is not provided

H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring

DIMENSION Micro ATX Form Factor Dimension: 23.6cm x 20.8cm ( W x L )

OS SUPPORT Supports Windows 10 (64bit) / 11(64bit)
?Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE BullGuard

ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x M.2 Anchor
1 x WiFi antenna accessories
