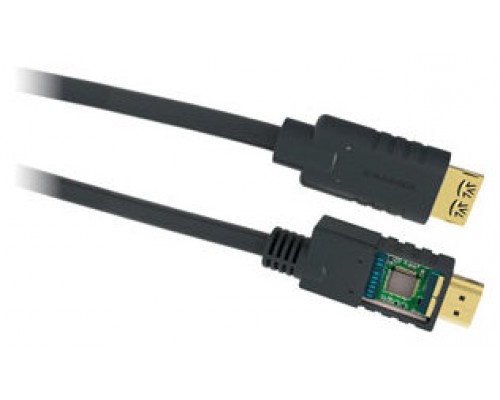

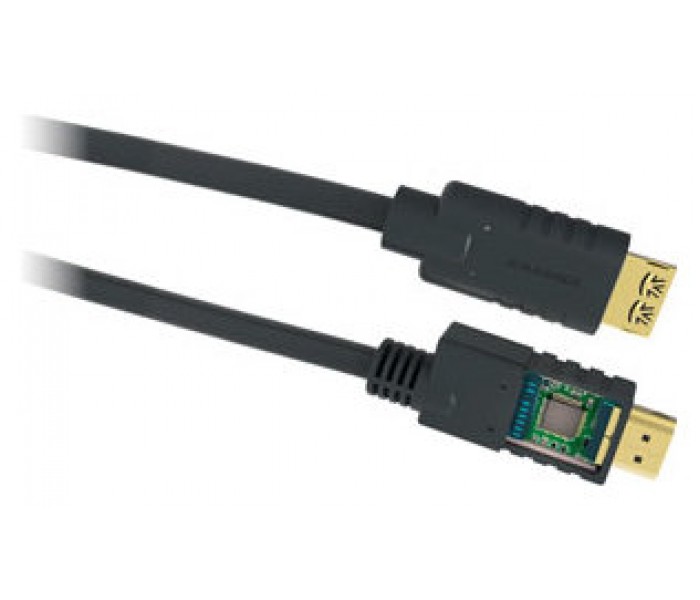

Active High Speed HDMI Cable with Ethernet

CA&minusHM active HDMI copper cable provides a perfect cable solution for delivering HDMI signals over long distances: 18Gbps up to 20m (66ft), 10.2 Gbps up to 25m (82ft) and 6.75Gbps up to 30m (98ft). The innovative technology utilized in the cable&rsquos connector features superior equalizing and signal compensation to meet the most demanding challenges in Pro AV installations.<br>This unique solution simplifies long distance installations by using a true plug & play cable that draws power from the HDMI source. There is no need for an external power source. <br>CA&minusHM features the Kramer exclusive K&minusLock HDMI connector, that prevents cables in your installation from unintentionally disconnecting, eliminating cable&minusrelated service calls. Additionally, an LED on the connector indicates when the signal is transmitted successfully.

Video Resolution: Up to 4K@60Hz (4:4:4).
High Data Transfer Rate: Up to 18Gbps.
HDMI Support: HDCP 2.2, HDR, EDID, ARC and CEC.
Deep Color, x.v.Color&trade, 5.1/7.1 lossless Dolby TrueHD and DTS-HD surround sound.:
High-quality Connectors: 24K gold&minusplated, corrosion&minusresistant connectors offer the best possible connectivity.
Pull-resistant: K&minusLock connectors with 15 lbs. of restraining force.
Triple Shielded: For maximum EMI protection.
UL Listed: CL3/FT4 rated for in&minuswall installations.
HDMI Source: On a male type A, 24K gold&minusplated K&minusLock connector
HDMI Display: On a male Type A, 24K gold&minusplated K&minusLock connector (optional external power input via micro USB connector)
Max Resolution for 15&minus66ft (4.6&minus20m) lengths: 4K@60Hz (4:4:4)
Max Data Rate for 15&minus66ft (4.6&minus20m) lengths: 18 Gbps (6Gbps per channel)
HDMI Compliance: HDCP 2.2, HDR, EDID and CEC
Supported Formats: Dolby Digital Plus, Dolby TrueHD, DTS&minusHD Master Audio&trade, DVD Audio, SA&minusCD
15ft (4.6m) length: 32AWG
25-35ft (7.6-10.7m) lengths: 28AWG
50ft (15.2m) length: 26AWG
66-98ft (20-30m) lengths: 24AWG
TMDS pairs: aluminum/mylar
Overall: aluminum/mylar + aluminum braid
Material: PVC
Color: Black
Diameter - 15ft (4.6m) length: 5.5±0.15mm
Diameter - 25-35ft (7.6-10.7m) lengths: 7.10±0.15mm
Diameter - 50ft (15.2m) length: 8.5±0.20mm
Diameter - 66-98ft (20-30m) lengths: 9.5±0.25mm
Cable Bending radius - 15ft (4.6m) length: 27.5mm
Cable Bending radius - 25-35ft (7.6-10.7m) lengths: 35.5mm
Cable Bending radius - 50ft (15.2m) length: 42.5mm
Cable Bending radius - 66-98ft (20-30m) lengths: 47.5mm
Connector Max. Pulling Strength: 15lbs/6.8kg
Temperature Rating: 80°C
Voltage Rating: 30V
Conductor Resistance - 32AWG: 588 Ω/km
Conductor Resistance - 28AWG: 237.25588 Ω/km
Conductor Resistance - 26AWG: 148.94 Ω/km
Conductor Resistance - 24AWG: 381 Ω/km
Electrical: UL listed, CL3/FT4
Environmental: RoHS 2011/65/EU
Max Resolution for 82ft (25m) length: 4K@60Hz (4:2:0)
Max Resolution for 98ft (30m) length: 1080p@60Hz 12&minusBit
Max Data Rate for 82ft (25m) length: 10.2 Gbps (3.4Gbps per channel)
Max Data Rate for 98ft (30m) length: 6.75Gbps (2.25Gbps per channel)
Varied Selection of Lengths: Available in versions of 15 to 98ft (4.6 to 30m).
Power Consumption: 90mA (18Gbps)/ 1mA (standby mode)
