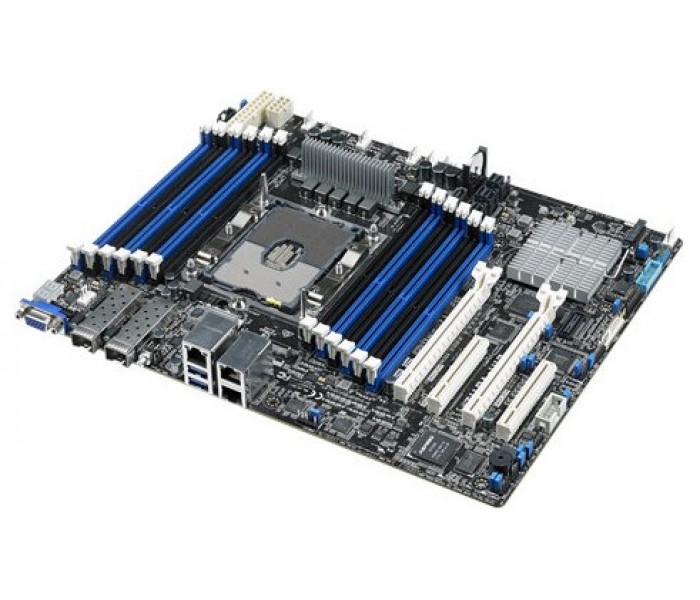

ASUS Z11PA-U12, ATX, Servidor, Intel, 10,4 GT/s, DDR4-SDRAM, 2400,2666 MHz

Especificaciones:. . Processor / System Bus. . 1 x Socket P (LGA 3647). 1st and 2nd Gen Xeon® Scalable Processor Family. *Refer to support page for more information. UPI (10.4 GT/s). . Core Logic. . Intel® Lewisburg PCH C621. . Memory. . Total Slots : 12 (6-channel per CPU, 12 DIMM per CPU). Capacity : Maximum up to 384GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS. Memory Type :. Single Channel DDR4 2933/2666/2400 LR-DIMM 3DS. Memory Size :. 32GB, 16GB, 8GB, 4GB RDIMM. 64GB, 32GB LRDIMM. 128GB, 64GB LR-DIMM 3DS. * Refer to support page for more information. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.. . Expansion Slots. . Total Slot : 4. Slot Location 1 : PCI-E x8 (Gen3 X4 Link). Slot Location 2 : PCI-E x16 (Gen3 X16 Link). Slot Location 3 : PCI-E x8 (Gen3 X8 Link). Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied. . Form Factor. . ATX (12""x9.6"", 305mm x 244mm). . Storage. . SATA Controller :. Intel® C621. 13 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector). Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows). (Support Software RAID 0, 1, 5, 10 ). Intel®VROC (For Linux/Windows). (Support Software RAID ). SAS Controller :. ASUS PIKE II 3008-8i 8-port SAS 12G RAID card. ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card. . Networking. . 2 x Intel® I210AT + 1 x Mgmt LAN. . Graphic. . Aspeed AST2500 with 64MB VRAM. . On Board I/O. . 1 x TPM header. 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector). 1 x USB 3.0 pin header , Up to 2 Devices. 1 x USB 2.0 pin header , Up to 2 Devices. 6 x Fan Header , 4pin (3pin/4pin fan dual support). 1 x Serial Port Header. 1 x SMBus. 1 x Chassis Intruder. 2 x Front LAN LED. 1 x M.2 Connector , NGFF Type : 2280/2260/2242. 1 x VROC Key Header. 1 x Q-Code/Port 80 LED. . Back I/O Ports. 2 x USB 3.0 ports. 1 x VGA port. 2 x RJ-45 GbE LAN ports. 1 x RJ-45 Mgmt LAN port. Rear Switch/LED:. 1 x Power switch. 1 x Message LED. 1 x HDD LED. 1 x Location LED. 1 x BMC LED. 1 x P5V LED. .

• CHIPSET: INTEL C621
• FORMATO: ATX
• HDMI: NO
• IMAGEN SALIDA: GRAFICOS EN PLACA/ VGA
• MEMORIA MAXIMA: 1536 GB
• MICROPROCESADOR INTEGRADO: NO
• MULTI-GRAFICA: NO
• N BANCOS DE MEMORIA: 12
• N CONEXIONES SATA: 13
• N USB 2.0: 2 INTERNOS
• N USB 3.0: 2 TRASEROS, 2 INTERNO
• PCI: 2 PCIe x16, 2 PCIe x8
• RAID: SI
• SATA 6GB/s: 13
• SOCKET: INTEL LGA3647
• SOPORTA OPTANE: NO
• TECNOLOGIA DE MEMORIA: LRDIMM 3DS
• TIPO DE RAID: 0,1,5,10
• USB 3.0: SI
• USB3.0 INTERNO: SI
